Editing pages

Use plain, semantic HTML to write your documentation. APIdocs will take care of ToC generation, code highlighting, image processing and full-text search.

Page outline

Below is the outline of a typical APIdocs page.

<article>
  <h1>Page title</h1>

  <p>Introduction.</p>

  <section id="section-1">
    <h2>Section 1</h2>

    <p>Section 1 content.</p>

    <section id="section-1.1">
      <h3>Section 1.1</h3>
    </section>
  </section>
</article>
The outline of a typical APIdocs HTML page source.

Here are some rules about the structure of page HTMLs:

  • In most cases, each APIdocs page will be an article covering a specific aspect of your software.

  • The root element of each page HTML file must be an HTML article.

  • Each article must have a child h1 element containing the article's title. APIdocs will use its contents to refer to the page in navigation links.

  • Use HTML section tags to divide your article into sections. Put section titles in HTML heading tags (h2, h3 etc.) inside the section tag. Do not use heading tags outside of sections.

  • If you would like a section to appear in the per-article table of contents, add an id attribute to that section. Additionally, sections with id attributes will have their heading submitted to the search index.

Text elements

Use typical HTML text elements as you'd normally do in a regular HTML page. Use p to delimit paragraphs, ul and ol for lists, ul for definition lists, strong and em for emphasis.

Some notes regarding text elements:

  • The search index uses paragraphs as the basic indexing unit. Keeping paragraphs short will not only make them easier to read, but also improve the search experience.

  • Do not use strong and em tags outside of paragraphs. Otherwise, their contents will not be indexed by the search engine.

  • For lists with short entries, put the text directly in the li tags. For lists with longer entries, put one or more p paragraphs inside the li. Both variants are handled by the search engine.

Images

Use img tags to embed images in your documentation. APIdocs will turn each such element into a responsive image that scales to take the whole width of the page. We will also generate optimized versions of the image in different resolutions, so that the appropriate version can be served depending on the user's device and viewport size.

Like with code examples, you can wrap an img tag in a figure and provide a figcaption to have the image described and treated specially in search results. Additionally, images inside the figure tag, when clicked, will zoom-in for full-screen viewing.

The following markup:

<figure id="lingo4g-map" data-indexing="disabled">
  <img src="lingo4g-explorer-dark.jpg" alt="Lingo4G document map view.">
  <figcaption>
    <p>
      A 2d map visualization of 3.5k medical paper
      abstracts related to vaccines produced by
      Lingo4G and visualized by dotAtlas.
    </p>

    <p>
      Textually-similar abstracts are clustered together
      on the map. The panel on the right shows the top abstracts
      lying in the map region described as <em>measles
      vaccine</em>. Phases specific to the selected
      map region are highlighted in the text of the abstract.
    </p>
  </figcaption>
</figure>

will render the following figure:

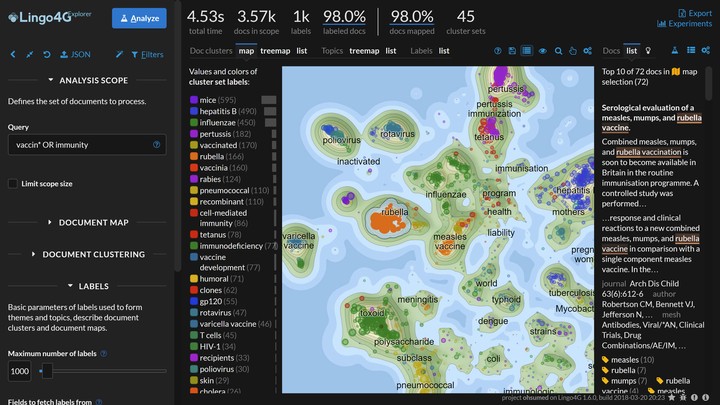

Lingo4G document map view.

A 2d map visualization of 3.5k medical paper abstracts related to vaccines produced by Lingo4G and visualized by dotAtlas.

Textually-similar abstracts are clustered together on the map. The panel on the right shows the top abstracts lying in the map region described as measles vaccine. Phases specific to the selected map region are highlighted in the text of the abstract.

Light and dark theme

You can provide separate images to show for the light and dark theme. To do this, include two img tags with light and dark CSS classes. APIDocs will show one of the images depending on the currently selected theme.

The following markup:

<figure id="lingo3g-workbench">
  <img src="lingo3g-workbench-dark.png" class="dark" alt="Lingo3G Workbench (dark theme)">
  <img src="lingo3g-workbench-light.png" class="light" alt="Lingo3G Workbench (light theme)">
  <figcaption>
    <p>
      Lingo3G Clustering Workbench.
    </p>
  </figcaption>
</figure>

will render the following image. Change the documentation theme to see the image change to match the new theme.

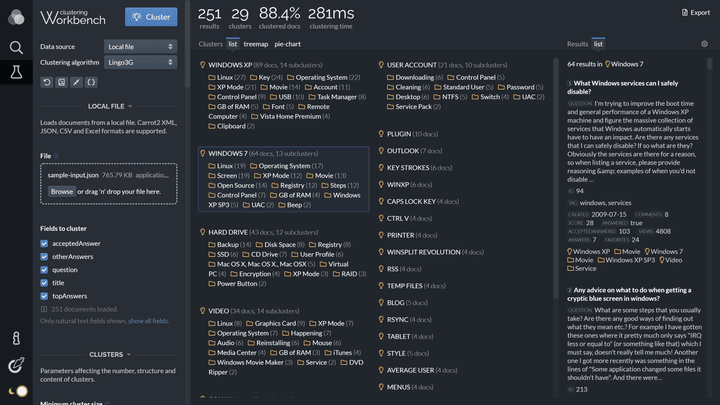

Lingo3G Workbench (dark theme)

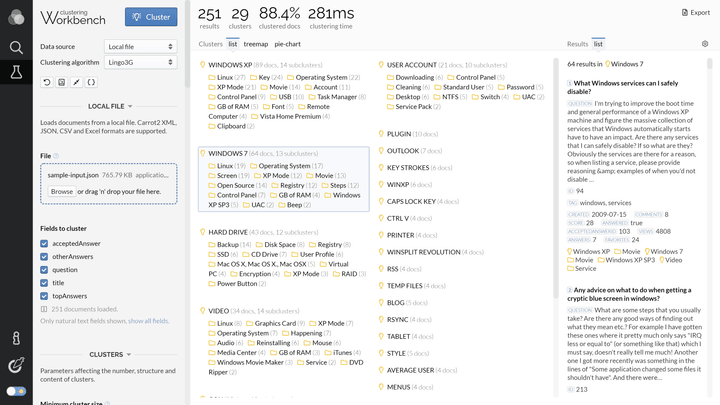

Lingo3G Workbench (light theme)

Lingo3G Clustering Workbench.

SVG

To include SVG images in your documentation, either in-line the svg element into your page or use the img tag pointing at an SVG file. In the latter case, if the src attribute points at an SVG file relative to the page, APIdocs will in-line the SVG into the output HTML.

SVG images inside the figure tag, when clicked, will zoom-in for full-screen viewing.

Example SVG graphics.

Info boxes

Use a div with class name info to generate an information box. A standalone strong tag can serve as the heading of the warning.

Info in search results.

Warning boxes get a special icon when presented in search results. Type info in the search box to find out.

Warnings

Use a div with class name warning to generate a warning box. A standalone strong tag can serve as the heading of the warning.

Warnings in search results.

Warning boxes get a special icon when presented in search results. Type warning in the search box to find out.
